Gas Valves

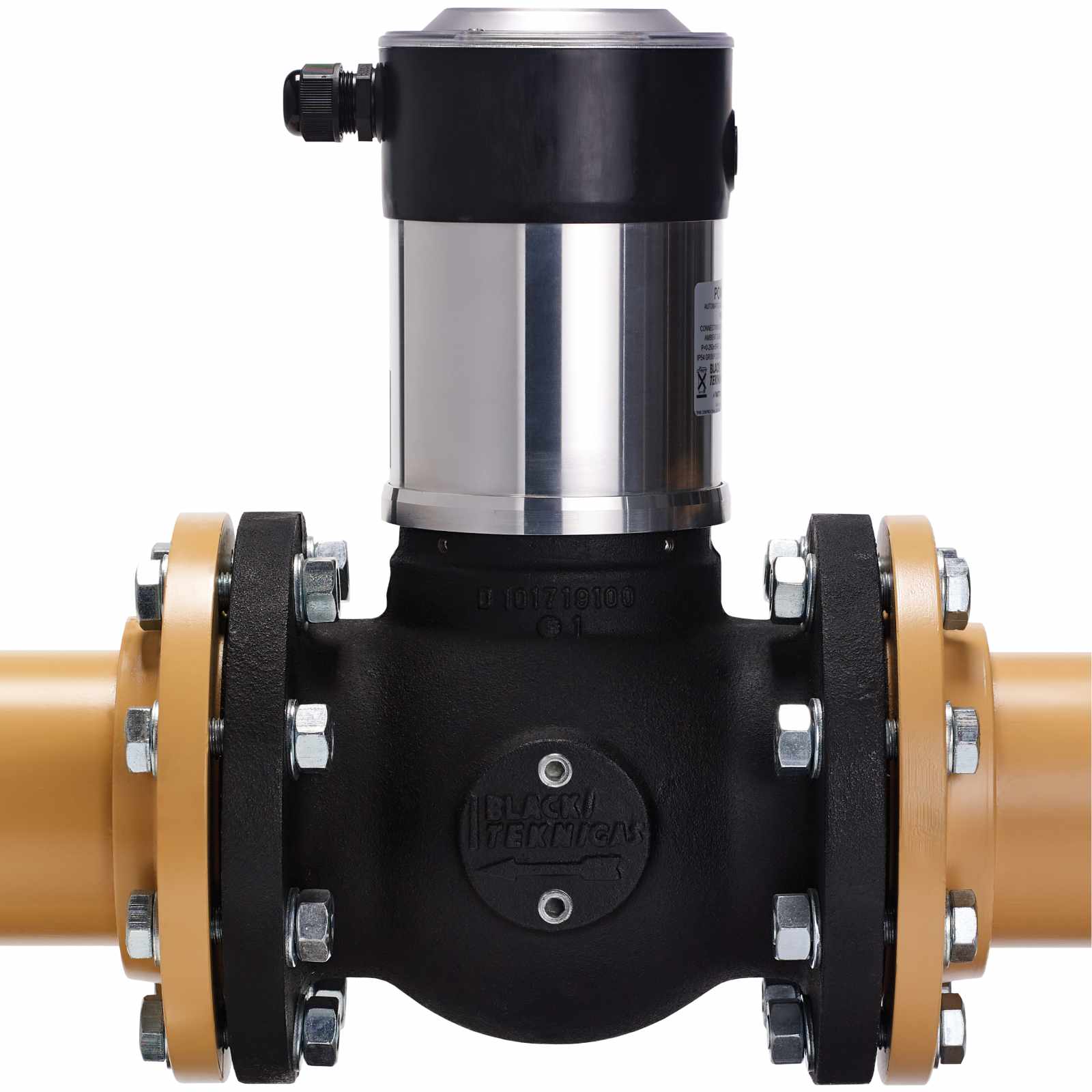

Gas Solenoid Valves are used for safety and control of gas for shut-off in gas feed pipes.
- Suitable for various gases, including Natural gas, Propane and LPG
- ¼” Inlet and outlet plugs suitable for CPI switch, pressure guage, connection to proving and interlock systems
- Class “A” BS EN1 61:2013 Approved British Gas & European Standards 90/396/EEC – 73/23/EEC – 89/336/EEC
- Certificate CE EC-0063CP1844
- SUPPLY VOLTAGE 230VAC (-15 % +10%) 50-60 HZ
| TYPE | SIZE | CONNECTION | MAX PRESSURE MBAR | SUPPLY VOLTAGE | POWER (W) |
|---|---|---|---|---|---|
| ZEV20 | 3/4″ | BSP | 360 | 230V AC | 22 |
| ZEV25 | 1″ | BSP | 360 | 230V AC | 22 |
| ZEV32 | 1 1/4″ | BSP | 360 | 230V AC | 42 |
| ZEV40 | 1 1/2″ | BSP | 360 | 230V AC | 42 |
| ZEV50 | 2″ | BSP | 360 | 230V AC | 50 |
| ZEV65 | 2 1/2″ | BSP | 360 | 230V AC | 72 |
| ZEV80 | 3″ | BSP | 360 | 230V AC | 72 |
| ZEVF65 | 2 1/2″ | FLG | 360 | 230V AC | 72 |
| ZEVF80 | 3″ | FLG | 360 | 230V AC | 72 |
| ZEVF100 | 4″ | FLG | 360 | 230V AC | 175 |
| ZEVF125 | 5″ | FLG | 200 | 230V AC | 290 |
| ZEVF150 | 6″ | FLG | 200 | 230V AC | 290 |
| ZEVF200 | 8″ | FLG | 200 | 230V AC | 290 |
